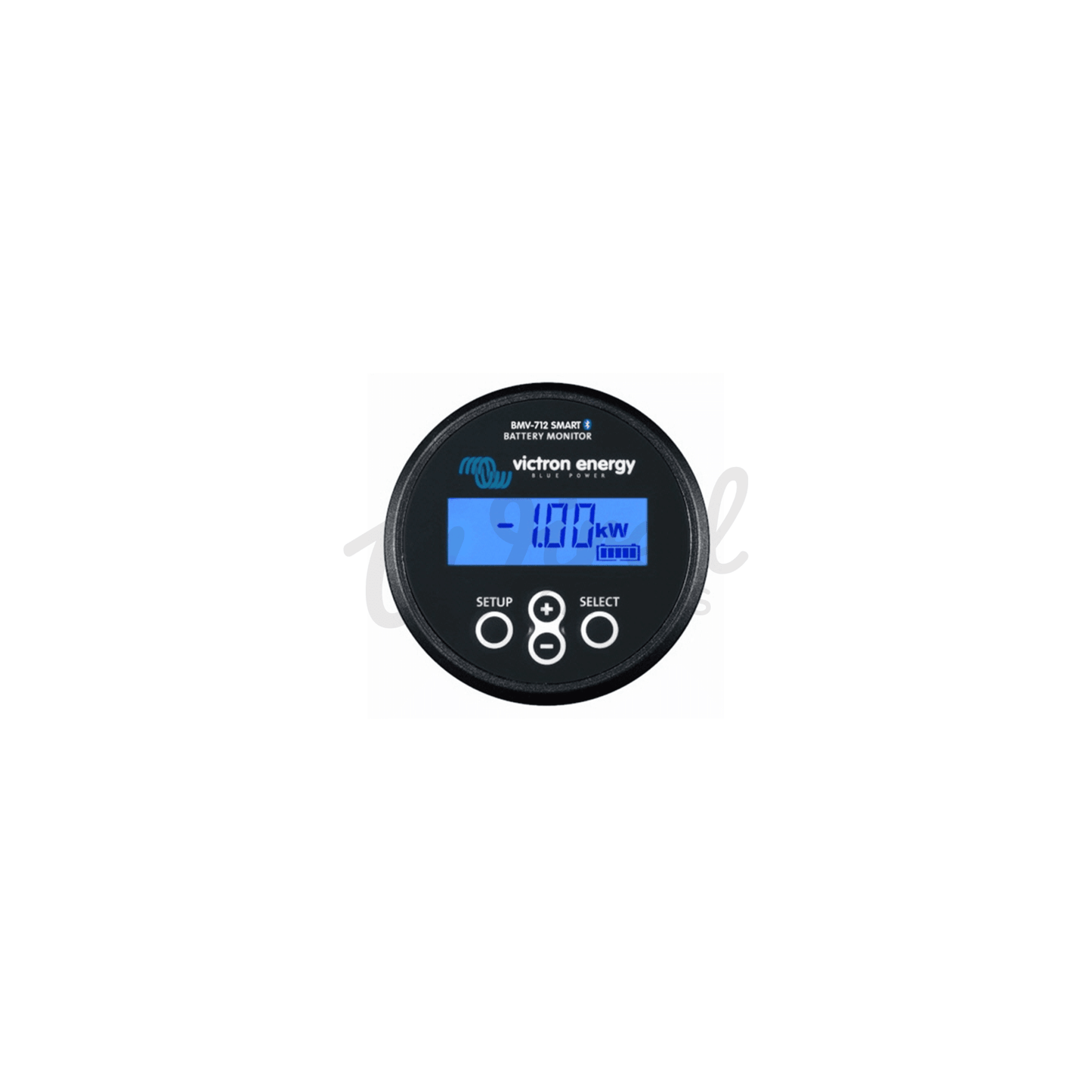

This Black Victron BMV-712 is a great and easy way to get real-time information from your leisure battery.

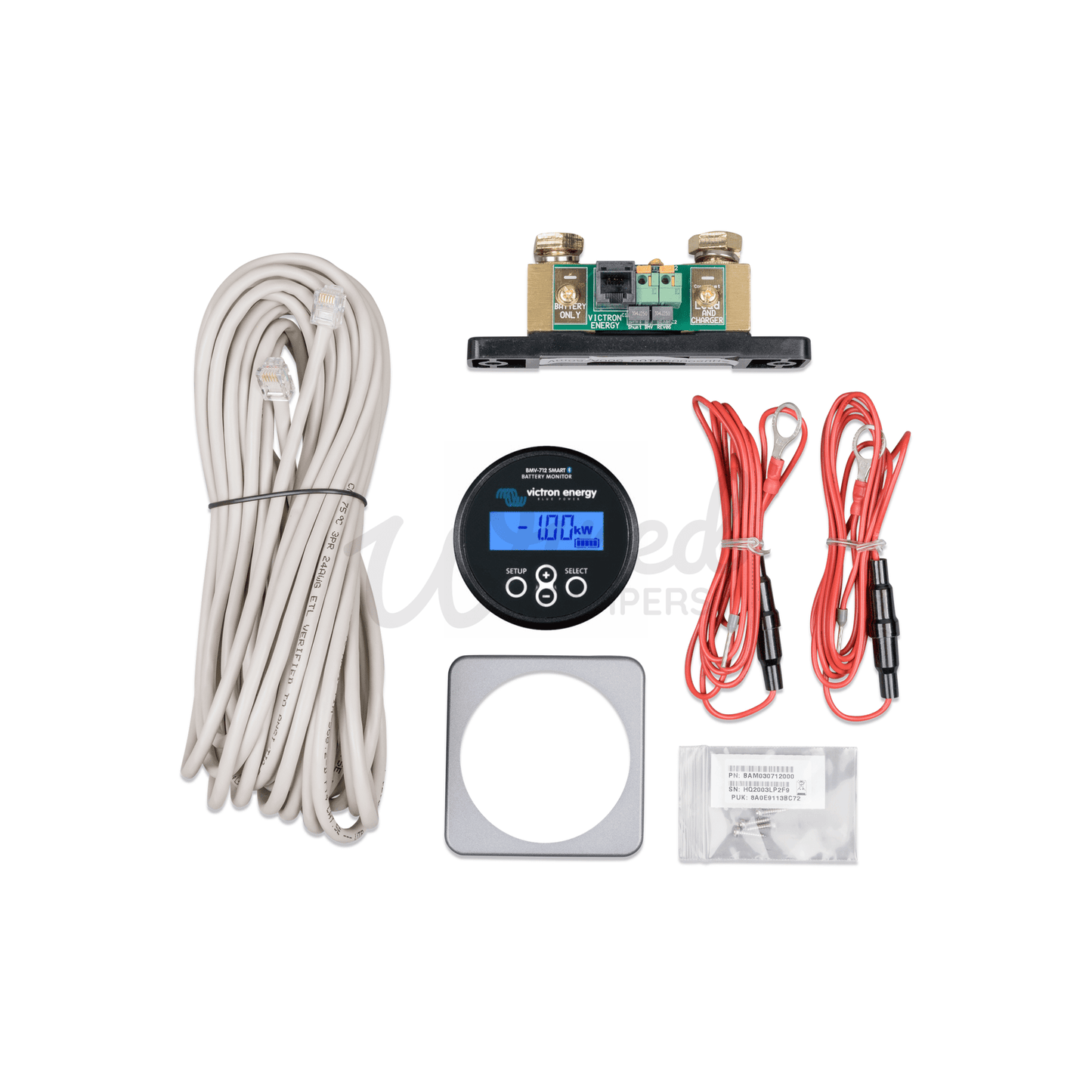

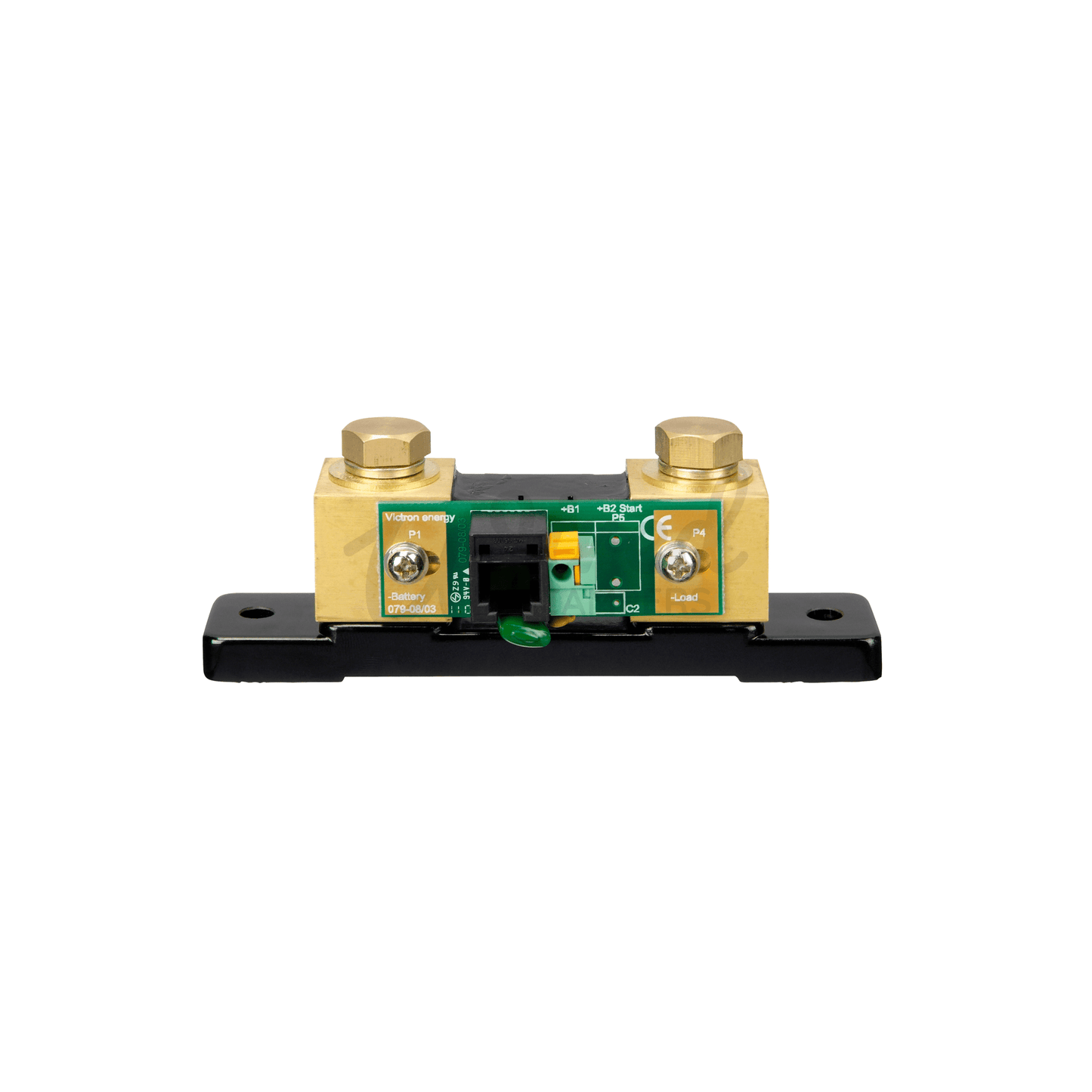

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

Also included are a separate front bezel for a square or round display appearance, a securing ring for rear mounting and screws for front mounting.

One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage. Please see the BMV manual, section 5.2, for more information.

We recommend our Battery Balancer (BMS012201000) to maximize service life of series-connected lead-acid batteries.

FEATURES

• Battery voltage, current, power, ampere-hours consumed and state of charge
• Remaining time at the current rate of discharge
• Programmable visual and audible alarm
• Programmable relay, to turn off non critical loads or to run a generator when needed
• 500 Amp quick connect shunt and connection kit
• Shunt selection capability up to 10,000 Amps
• VE.Direct communication port
• Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
• Wide input voltage range: 6.5 – 70 V
• High current measurement resolution: 10 mA (0.01 A)
• Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings

TECHNICAL SPECIFICATION

• Supply voltage range - 6.5 - 70 VDC
• Current draw, back light off - < 1 mA
• Input voltage range, auxiliary battery - 6.5 - 70 VDC
• Battery capacity (Ah) - 1 - 9999 Ah
• Operating temperature range - -40 +50 °C (-40 – 120 °F)
• Measures voltage of second battery, or temperature, or midpoint - Yes
• Temperature measurement range - -20 +50 °C
• VE.Direct communication port - Yes
• Bistable relay 60V / 1A normally open - (function can be inverted)
