PLEASE NOTE - THE LEAD TIME ON THIS KIT IS CURRENTLY 1 WEEK.

KIT OVERVIEW

We created this kit to give you a great setup for those that tend to do more wild or off-grid camping, when you wouldn't necessarily have a hook up point.

It'll provide both on-grid mains when plugged in, and off-grid mains via an inverter. You'll also get mains battery charging, leisure battery charging from your van, and a complete DC system.

We've packed a lot into it, so a summary the kit is below -

• Voltage sensitive relay split charge kit

• 3000W (3kW) inverter charger

• Hook up consumer unit

• Mains consumer unit

• 12V fuse box

• Main 5 way control panel

• Mini USB and 12V port

• Remote control lighting dimmer

• 6 LED lights with distribution box

• Negative 5 way bus bar

• Supported battery technology - AGM

• Battery charging current - 18A / 36A / 54A / 72A / 90A

Want to know more? Just keep reading...

WHAT'S IN THE KIT?

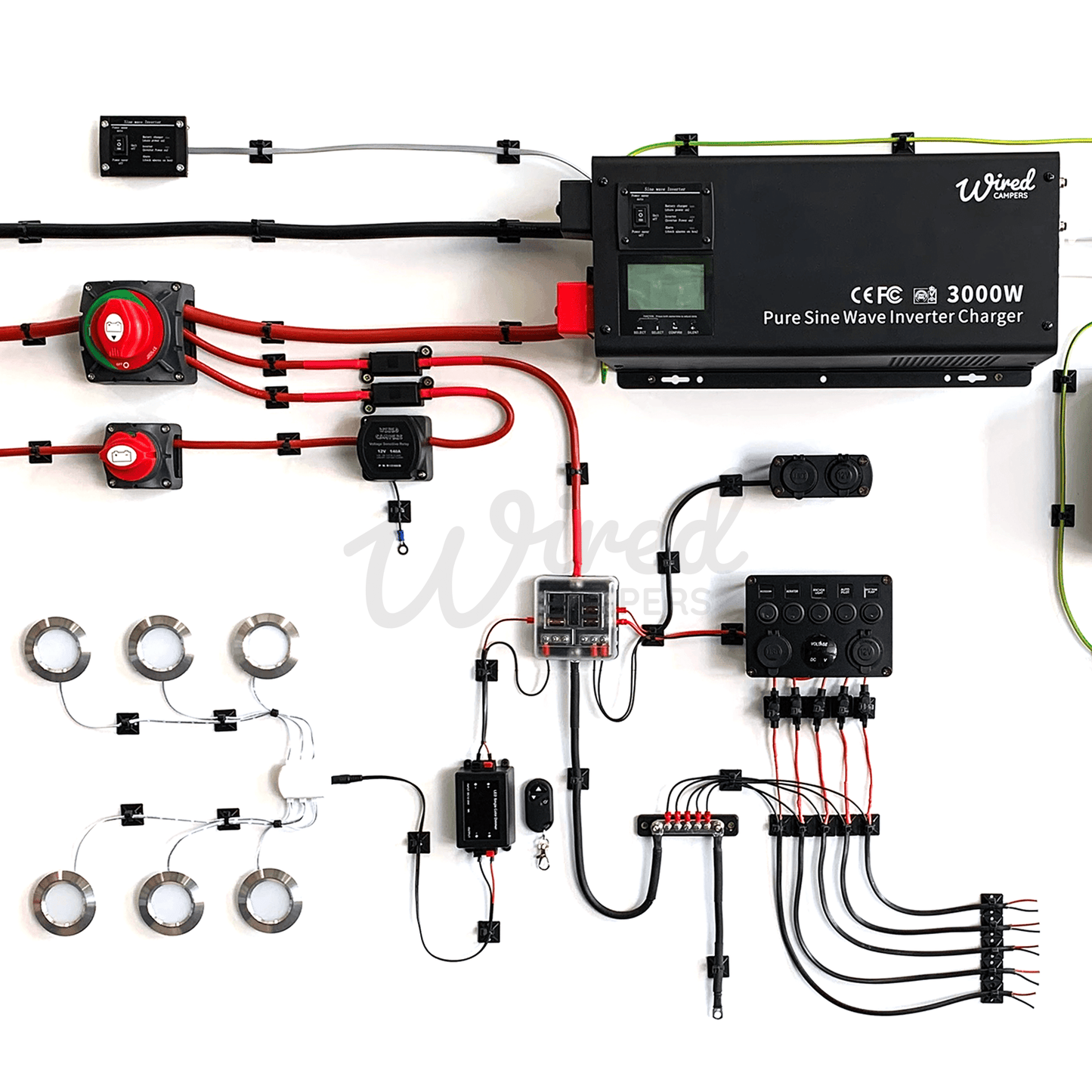

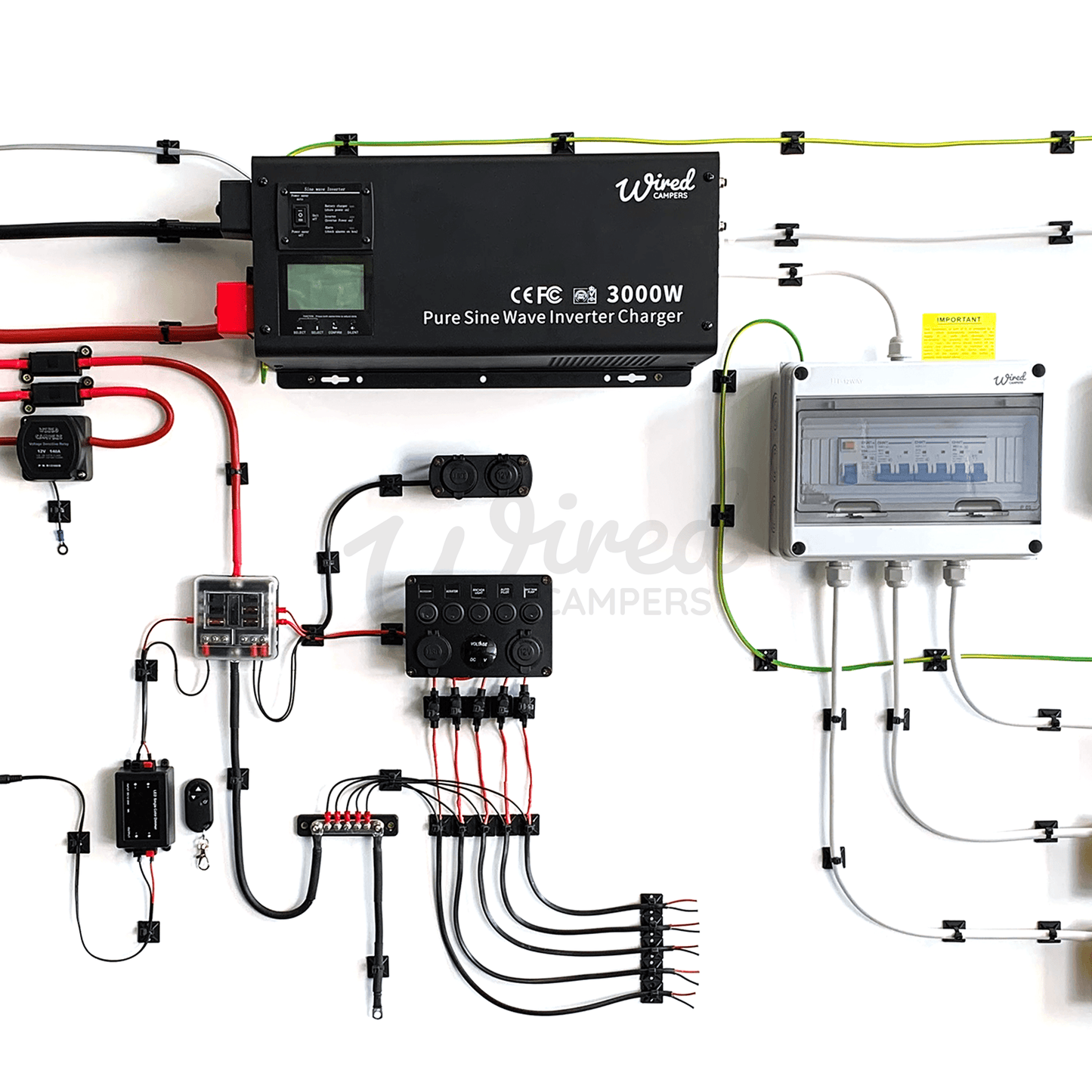

Inverter Charger

This is the heart of the kit. A powerful 3000W low frequency inverter with a built in battery charger. It has the ability to provide 240V mains anywhere. You can still plug into a hook up to get it as well, but when you're off grid the inverter will kick into life and provide mains power in your camper van.

Details

• Continuous power - 3000W (3kW)

• Surge power - 9000W (9kW)

• DC Input voltage - 12V

• AC Input voltage - 240V

• AC output voltage - 240V

• Supported battery technology - AGM

• Battery charging current - 18A / 36A / 54A / 72A / 90A

• Wave form - Pure sine wave with bypass mode to sync to input

• Efficiency - Line mode >95% / Battery mode >88%

• Power saver mode trigger - Load is greater than 25W

• 5M remote control

• MEGA fuse holder

• 350A MEGA fuse

• 600A 12V battery isolator

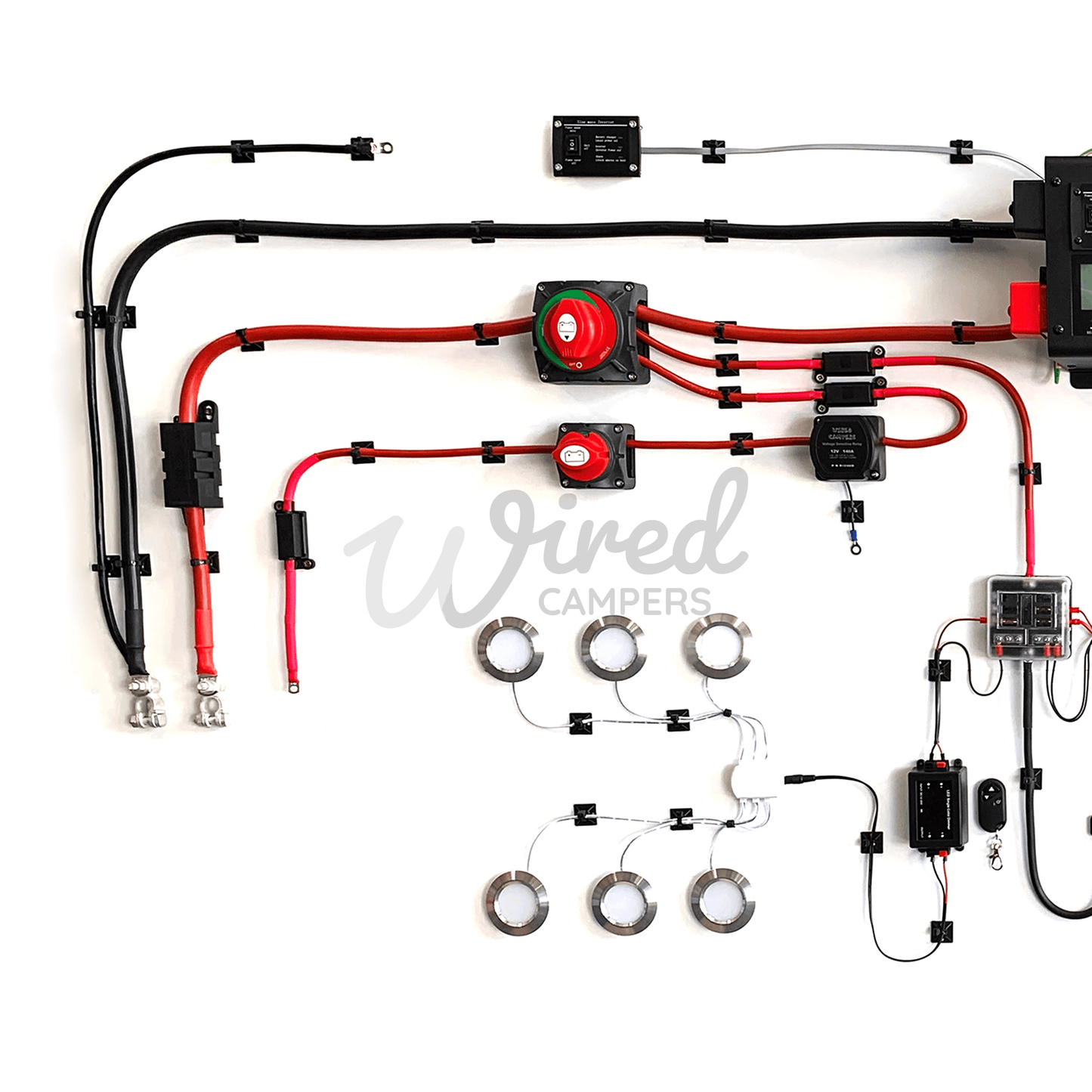

Split Charge Relay

All the parts required to enable you to charge up your camper vans leisure battery using the starter battery/alternator of your vehicle. Included in the kit is a voltage sensitive relay that only draws power and charges your leisure battery when your starter battery is at a certain voltage. This ensures that you never end up with a flat starter battery in your vehicle.

Please note, this is only suitable for vehicles with a standard alternator. If you have a smart alternator you'll need our DC-DC version of this kit, please contact us for further information.

Details

• 12V 140A voltage sensitive relay

• 2 X MIDI fuse holders

• 2 X 100A MIDI fuses

• 250A 12V battery isolator

6 Way 12V Fuse Box (ITEM 3)

This is the heart of the 12V DC system in your van. Each 12V item and accessory can be connected to the fuse box to provide a safe and central location for termination.

Details

• 100A max current

• 6 outlets with LED indication

• Built in negative bus bar

• Assorted fuses

• MIDI fuse holder

• 100A MIDI fuse

Main 12V Control Panel

The standard in any camper van. This 5 way panel comes with built in dual USB ports, a 12V port, and voltmeter. From this, you then have 5 switched outputs to go out to your 12V accessories such as additional lighting, water pump etc.

Details

• Dual 2.1A USB ports

• 12V port

• Blue LED lighting

• 10A max current

Mini 12V Panel

This smaller panel is ideal for placement near your sleeping area or kitchen. Giving you another couple of ports to charge up your phone or tablet on the go.

Details

• Dual 2.1A USB ports

• 12V port

Remote Control LED Lighting

Easy plug and play lighting circuit to install in your roof or cabinets. Each LED light simply plugs into a distribution box which is then powered by a remote control unit. This allows you to turn the lights on and off with the remote and it also provides a dimmer function.

Details

• 6 X 3W flush mounted satin steel LED lights

• 6 way junction box

• Remote control box with dimmer function
• DC plug with standard 90cm lead

• Each light has it's own 2M terminated lead to plug into the junction box

Negative Bus Bar & Earthing

This bus bar is used to earth the fuse box to the chassis and also provides a central earth point for the 5 outlets out of the control panel. A separate earth strap is also required to earth the leisure battery to the chassis.

Details

• 100A max current

• 5 way

240V Mains Equipment - Inverter Input

This is a small mains consumer unit that runs from the surface mount 16A hook up point on the outside of your van and feeds the input of the inverter. This protects the inverter from any power surges and overloads and is the first point of safety, providing an earth to both the inverter body and the chassis of your camper van.

Details

• 5 way plastic consumer unit

• 30mA 63A double pole RCD

• 16A double pole MCB

• Neutral 63A bus bar

• Flush mounted 16A magnetic hook up point

• Relevant electrical safety stickers

Cabling Lengths

• Hook up input - 2.5mm² Arctic three core flex - 5M

• Inverter input - 2.5mm² three core flex - 3M

• Inverter earth (Terminated with ring terminal) - 6mm² tri rated flex - 2M

• Vehicle earth (Terminated with ring terminal) - 6mm² tri rated flex - 2M

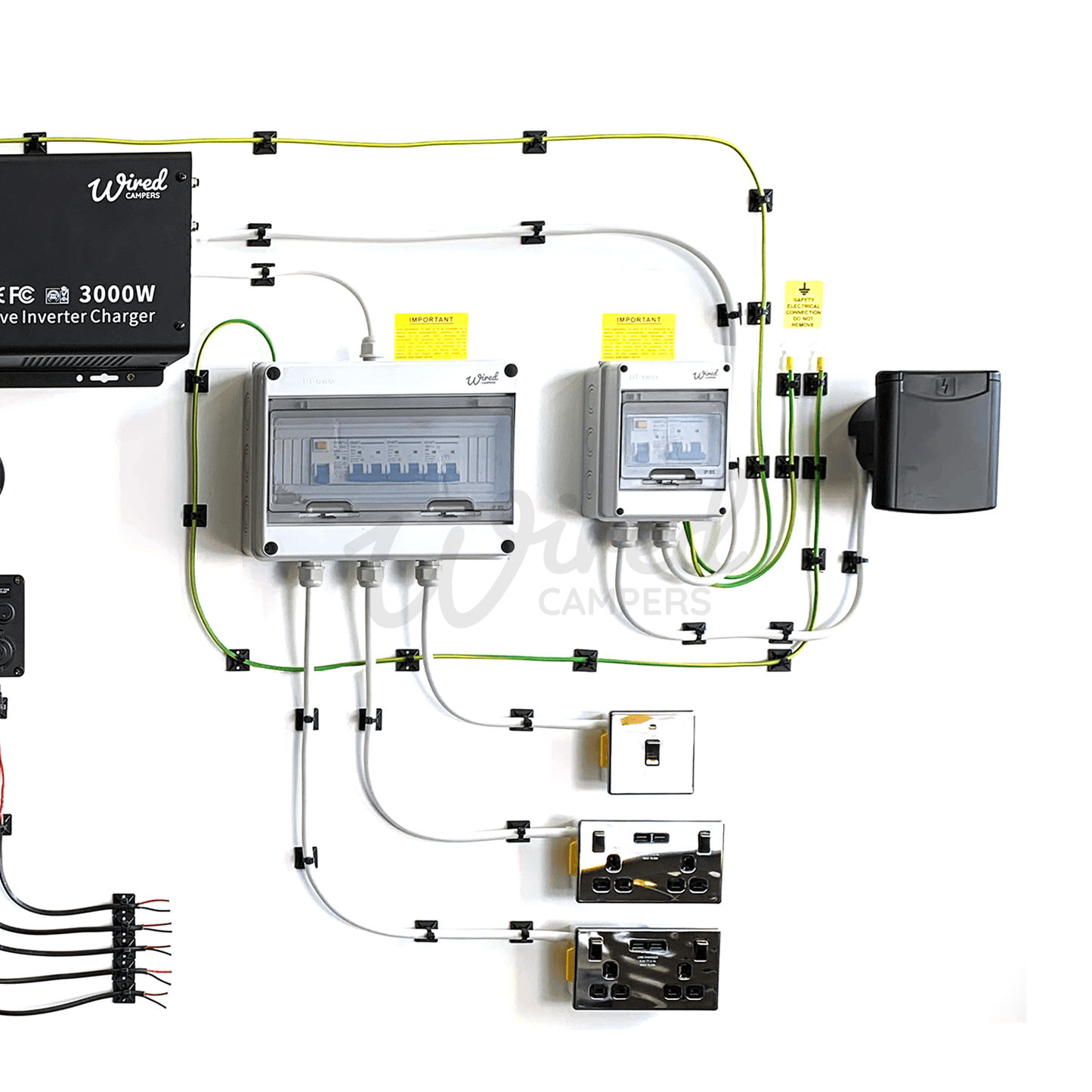

240V Mains Equipment - Inverter Output

This is the central mains consumer unit for the camper van. This takes the output from the inverter/hook up and feeds the power via double pole RCD's and MCB's to the mains sockets and switches.

Details

• 12 way plastic consumer unit

• 30mA 63A double pole RCD

• 2 X 10A double pole MCB's

• 6A double pole MCB

• Neutral 63A bus bar

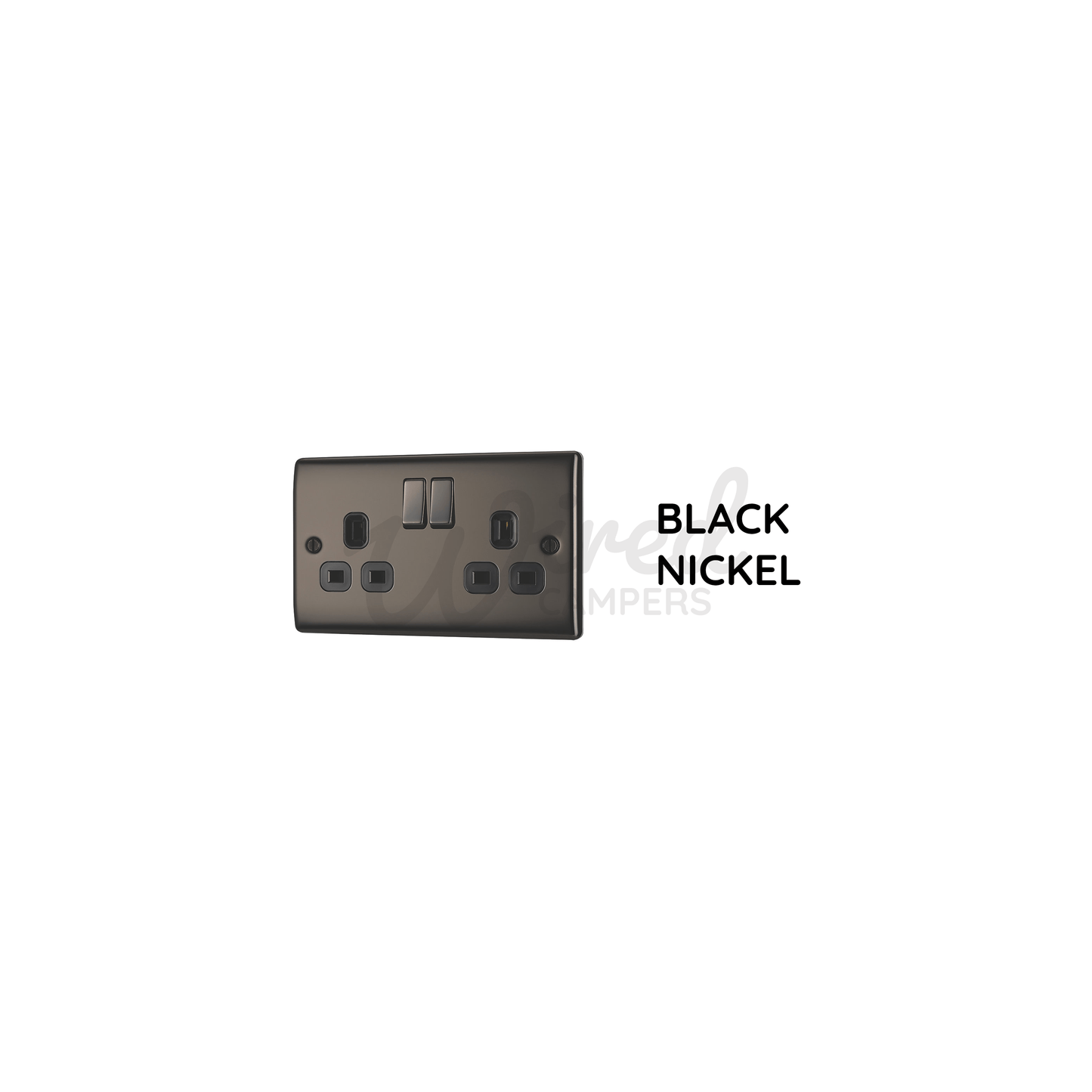

• 2 X 13A UK double sockets  - PLEASE NOTE DUE TO SUPPLY ISSUES, ALTHOUGH PICTURED, THESE SOCKETS NOW DO NOT COME WITH USB PORTS (IMAGES TO BE UPDATED). THEY ARE A STANDARD UK DOUBLE SOCKET.

• 20A double pole switch for hard wiring mains appliances such as a fridge or a
• water heater (This can be swapped for a single socket if preferred)

• 2 X double surface mount back boxes

• Single surface mount back box

• Relevant electrical safety stickers

Cabling Lengths

• Inverter output - 2.5mm² three core flex - 2M

• Vehicle earth (Terminated with ring terminal) - 6mm² tri rated flex - 2M

• Sockets & Switches - 1.5mm² three core flex - 3M each

When using your camper in the EU, they tend to use a system where the natural is not earthed, having double pole equipment ensures a higher level of safety. The outlets are also individually protected by their own MCBs as per regulations.

12V CABLING

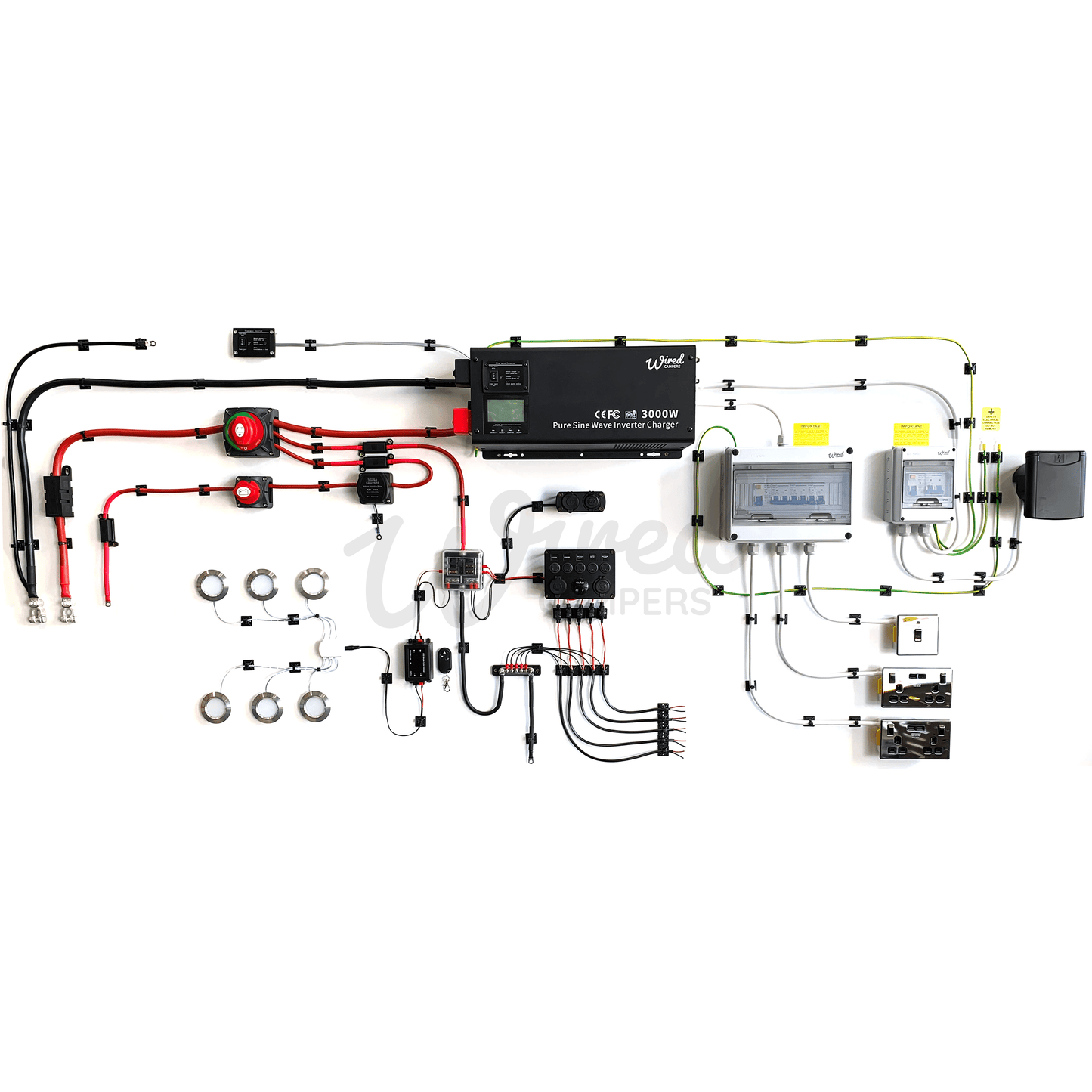

We will provide adequate lengths of cable to complete the installation as seen on the screen, the lengths provided are suitable for most camper installations, but if you need anymore, this is all available to buy on our website.

For use to wire both the input and output of the VSR and the connection of the 6 way 12V fuse box -

• 16mm² Red Positive Hi Flex - 10M
• 16mm² Black Negative Hi Flex - 10M

For use to wire the 3000W Inverter to your leisure battery -

• 70mm² Red Positive Hi Flex - 3M
• 70mm² Black Negative Hi Flex - 3M

For use to wire from the low current 12 way fuse box to your 12V accessories -

• 2.0mm² Twin core automotive thin wall cable - 1 X 30M

All crimps, terminals, and heat shrink will be provided in the kit to make the necessary connections.

ADDITIONAL IMPORTANT INFORMATION

As with all the kits and layouts provided on our site, they serve as a guide only and we recommend all wiring and installation is carried out by a qualified professional. Disconnect all AC and DC power sources to prevent accidental shock. It is the installer’s responsibility to ensure compliance with all the applicable installation codes, regulations, and to ensure the equipment is fitted correctly.
