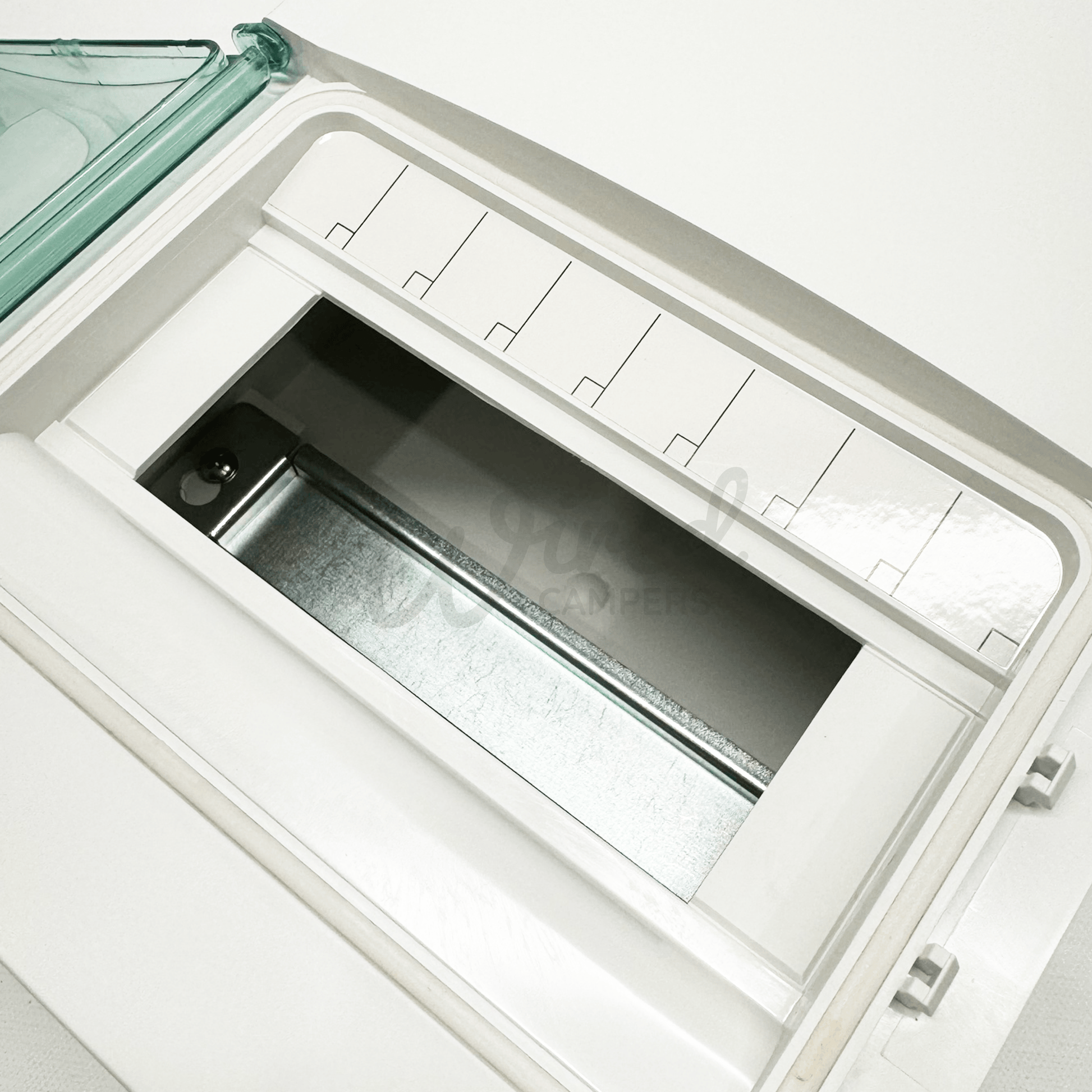

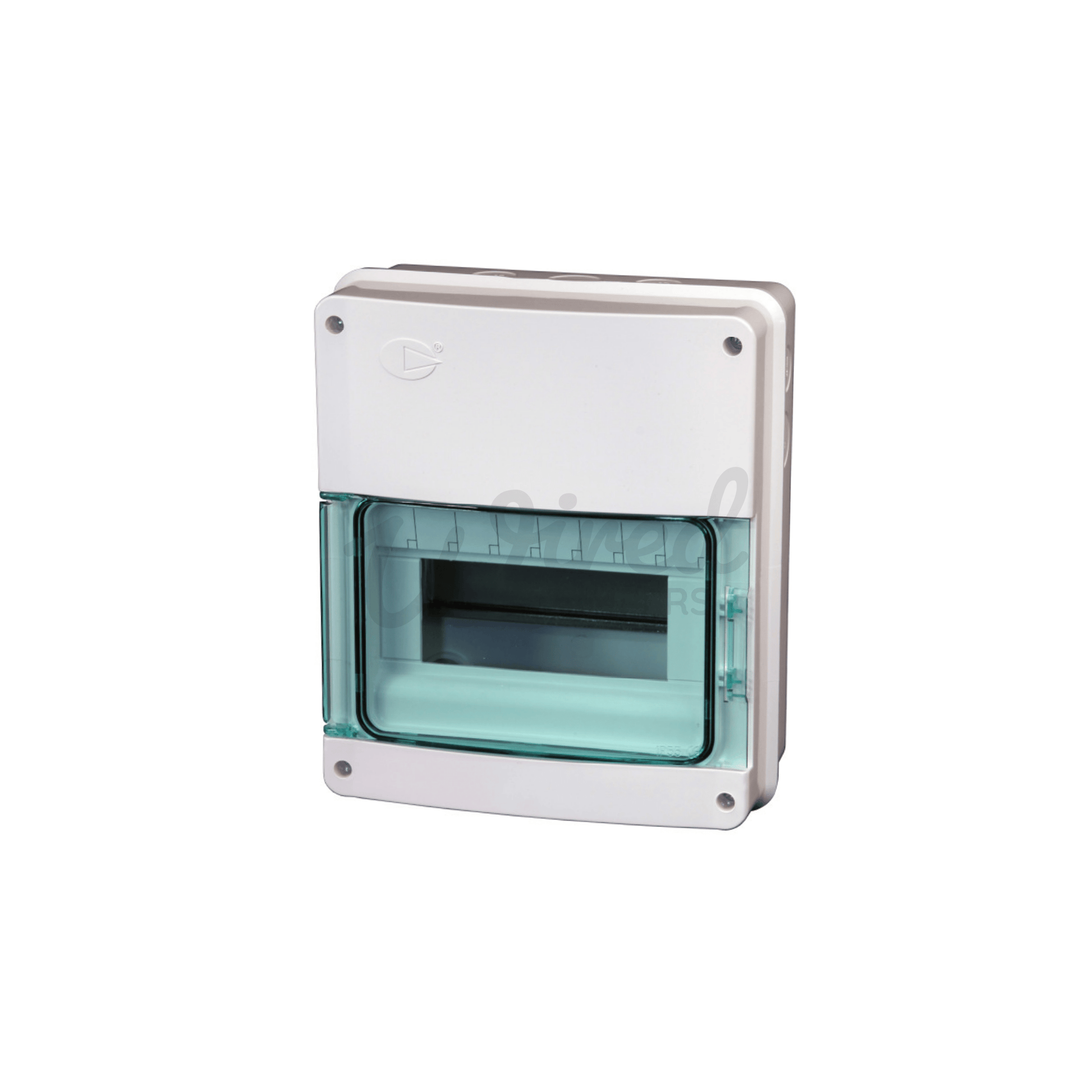

Lewden insulated weatherproof enclosures are manufactured from self extinguishing ABS material.

The tall enclosure height offers a significant amount of wiring space making installation a breeze.

Enclosures come complete with -

• 35mm DIN Rail
• Neutral & Earth bars

• Neutral flex for connection of the incoming device to the neutral bar

• Single pole comb busbar
• Blanks

TECHNICAL SPECIFICATION

• 8 Module
• Ingress Protection - IP55
• Impact resistance - IK07
• Earth bar max conductor size - 16mm2
• Neutral bar max conductor size - 16mm2
• Single pole comb bus bar rating - 63A

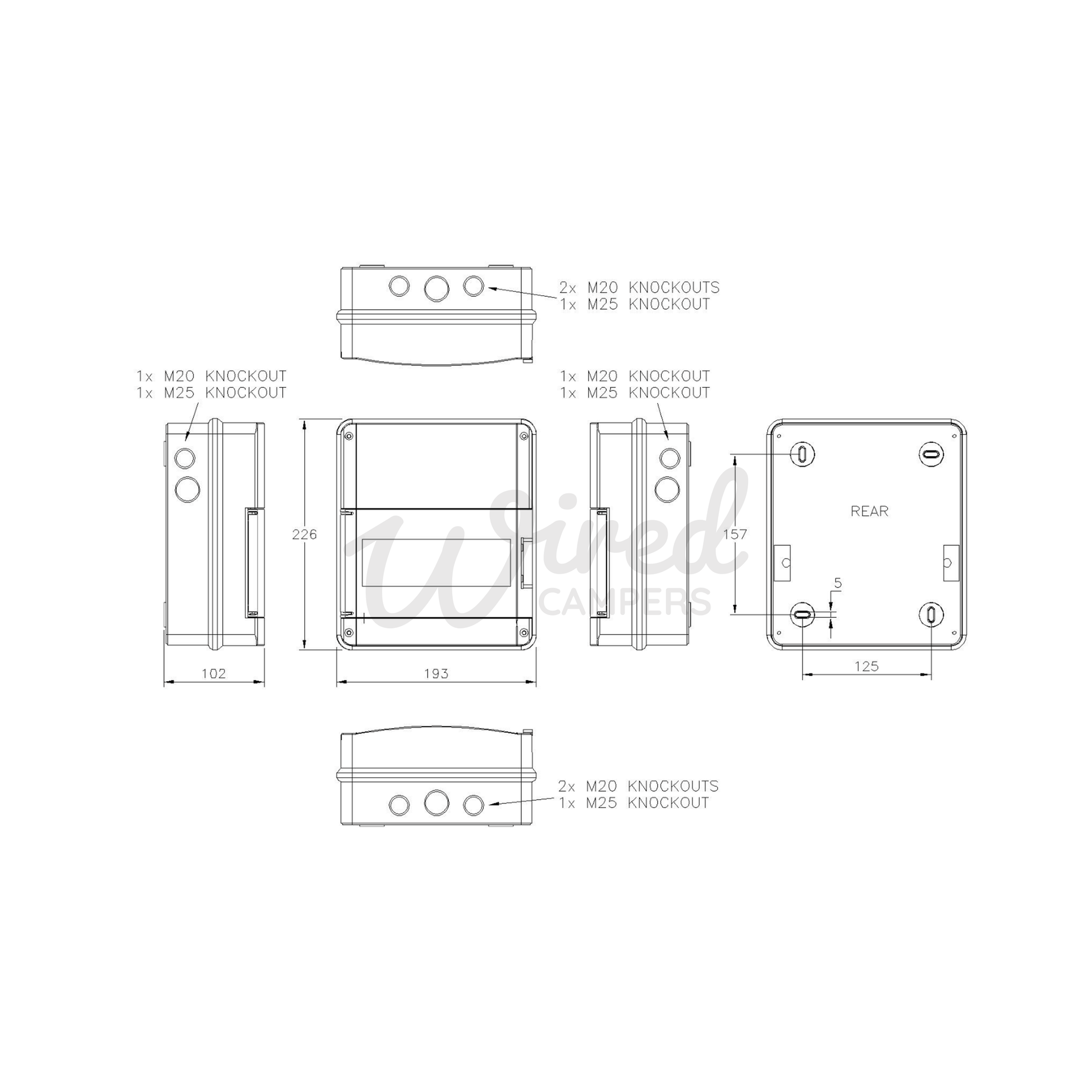

• Approx. Dimensions - 226 X 193 X 102
• Colour - White

• GTIN - 5026992044988
